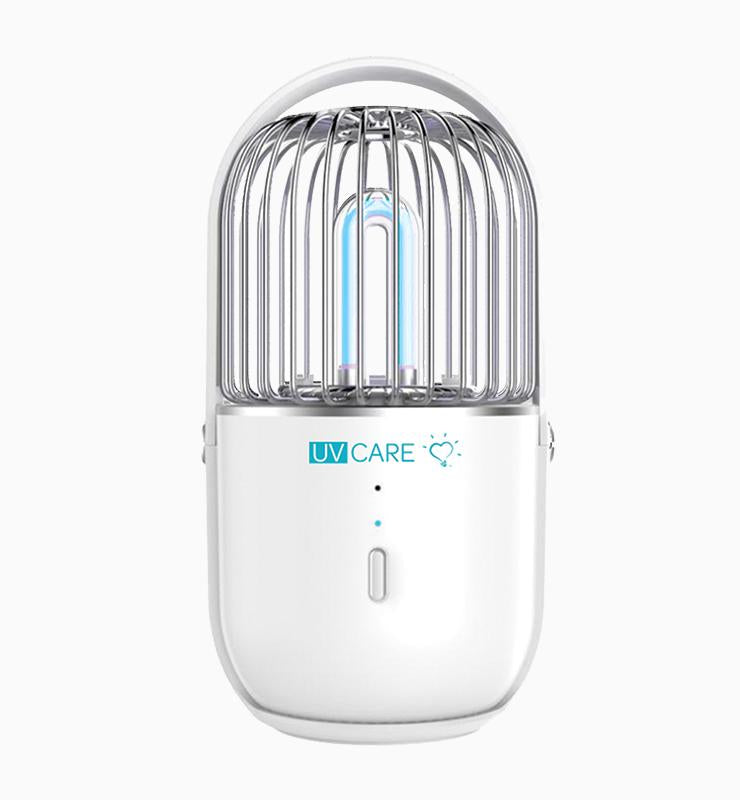

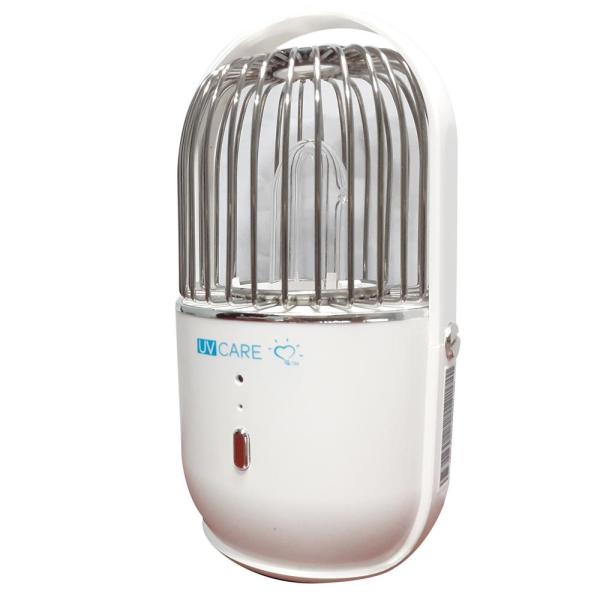

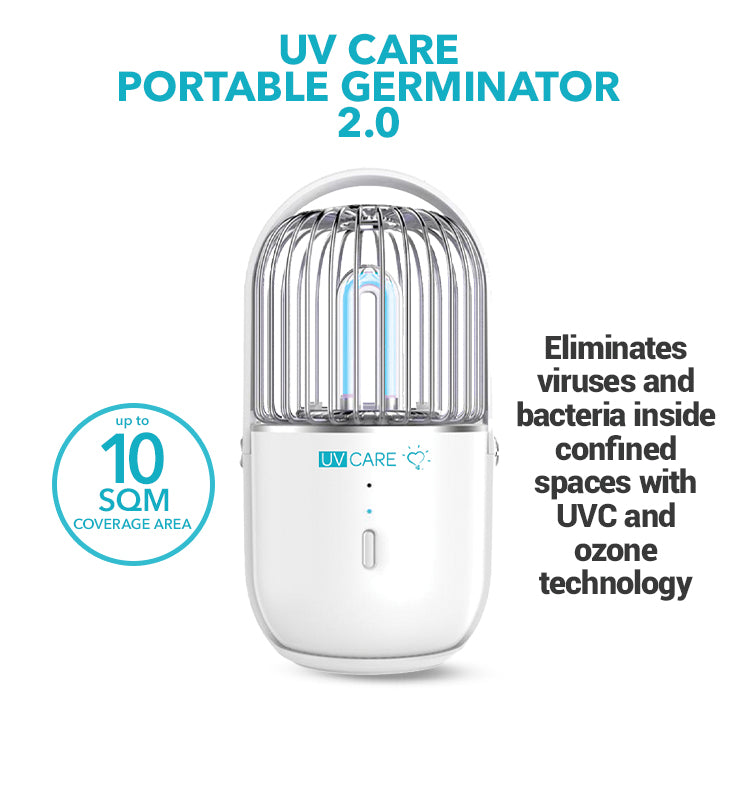

UV Care Portable Germinator 2.0

1. UV Care Portable Geminator Unit
2. USB Cable
3. User Manual
4. Warranty Card

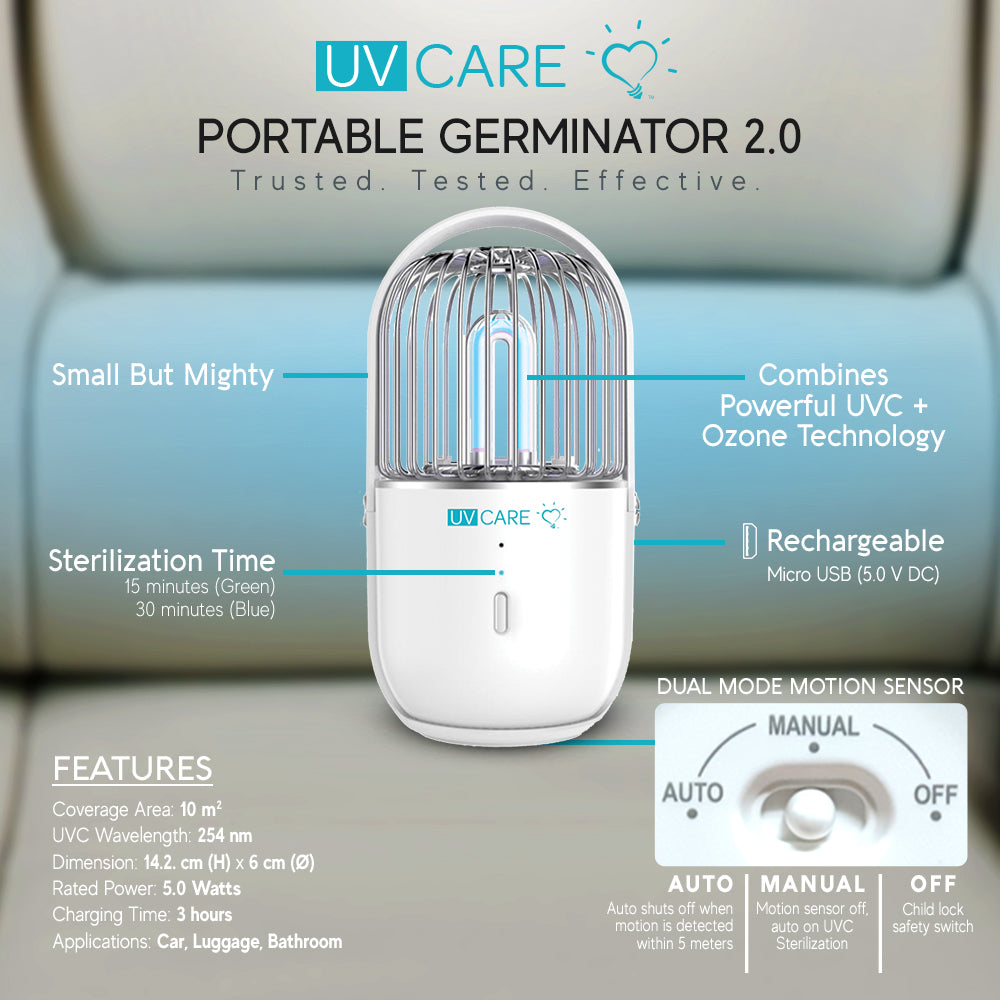

Product Features:

• Sterilizing Technology
  U Shape UVC Light + Ozone
• Coverage Area
  10 sqm
• UVC Sterilization Time
  15 minutes (green light, 1st press)  or 30 minutes (blue light, 2nd press)

• Ozone Downtime
  +15 minutes or +30 minutes

• UV-C Wavelength
  254 nm

• Sterilization Rate
  Up to 99.9%

• Safety Features
  Motion Sensor activated in Auto Mode (Auto Shuts Off when motion is detected)

• Charging Time
  3 Hours (To be charged on AC Power only)
  15 mins. sterilization, you can use the unit for up to 14 times
  30 mins. sterilization, unit can work for up to 7 times
• Battery
  1800 mAh (Lithium Battery)
• Rated Voltage
  5.0 V DC

• Product Dimensions
  6 cm (diameter) x 14.2 cm

• Product Weight
  0.5kg

• Ozone Density
  3mg/h


• Material
  ABS Plastic & Metal (Body), Quartz Glass (UV-C Lamp)

Applications

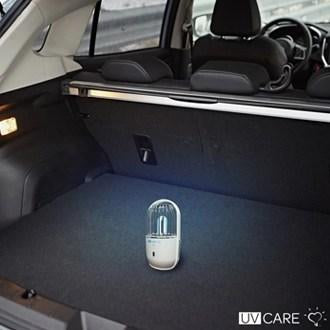

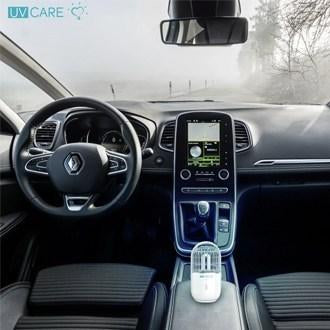

• Cars
• Homes (Drawers, Cabinets, Pantry)
• Storage Boxes
• Shoe Cabinets

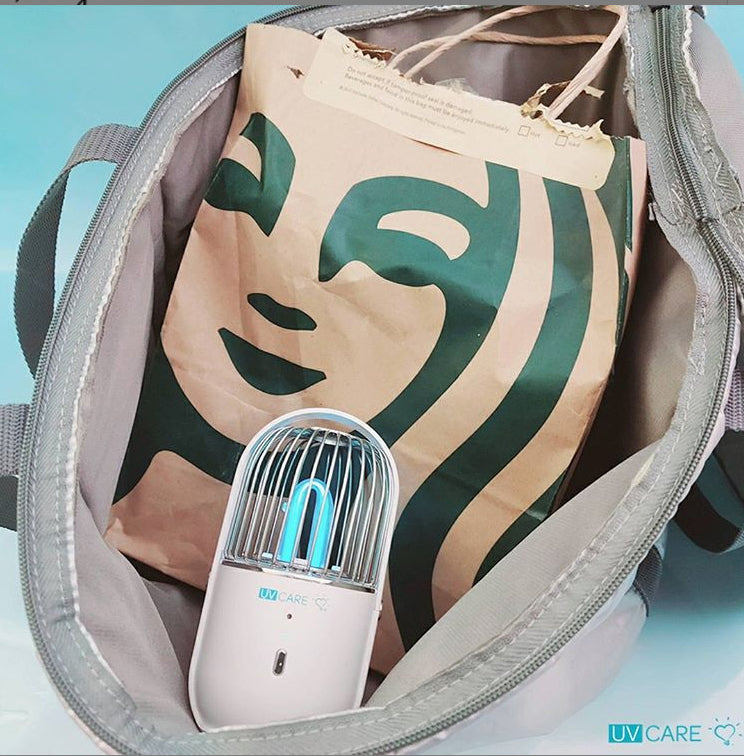

• Luggages

Advantages

• Sterilizes and Deodorizes (due to ozone technology)
• Portable
• Laboratory Tested
• Chemical-free
• Compact and Lightweight
• Rechargeable
• Easy to Use and Maintain

User Guide

1. Fully charge the unit for 3 hours.
2. Set desired mode by sliding the switch at the bottom of the unit- Auto (with Motion Sensor) or Manual
3. Manual Mode
   15 minute Sterilization Time. Long press the power button for 2 seconds until a GREEN light indicator is switched on.
   30 minute Sterilization Time. Press twice the power button until the BLUE light indicator is switched on.
4. Auto Mode
   15 minute Sterilization Time. Long press the power button for 2 seconds until a GREEN light indicator is switched on.
   30 minute Sterilization Time.Press twice the power button until the BLUE light indicator is switched on.
5. Lamp will auto shut off once the machine senses any movement.
6. Unit will automatically turn off after sterilization.
7. Kindly allow an additional down time equivalent to chosen sterilization time (15 or 30mins) to ensure that residual ozone has fully dissipated.
8. Add the UVC sterilization time + equivalent ozone time before entering the room or retrieving the item (i.e. 15mins UVC sterilization + 15mins ozone downtime = 30mins total sterilization process or 30mins UVC sterilization + 30mins ozone downtime = 60mins total sterilization process)
9. Store unit in a cool, dry, flat and sturdy place. Keep away from children’s reach.
